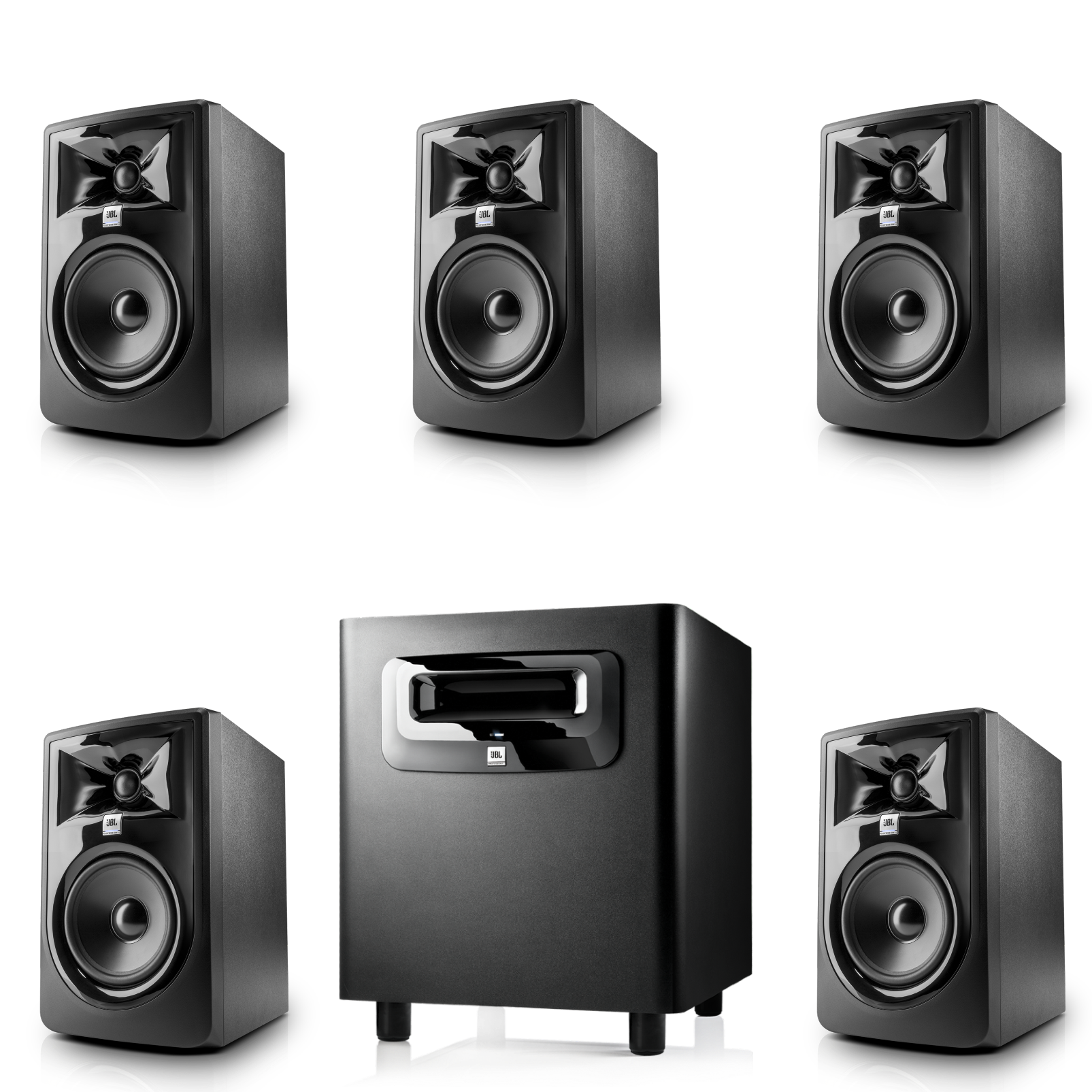

305P MkII 5 inch Powered 5.1 Monitor System with Subwoofer

General Specifications

LF Driver Size

127 mm (5)

HF Driver Size

25 mm (1)

HF Driver Type

Soft dome

Crossover

1725Hz 4th order acoustic Linkwitz-Riley

Power Configuration

Bi-amplified

HF Driver Power Amp

41 W Class D

LF Driver Power Amp

41 W Class D

Frequency Response

49Hz – 20kHz (±3dB)

Frequency Range

43Hz – 20kHz (-10dB)

Low Frequency Extension

43Hz (-10dB)

Maximum Continuous SPL

94dB

Maximum Peak SPL

108dB

Maximum Peak Input Level

+6dBV / +20.3dBu (-10dBV / +4dBu)

System Distortion Criteria

<10% THD at maximum output with full compressor / limiter engagement

Electrical Distortion Criteria

0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output

Signal to Noise Ratio

75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output

Coverage Pattern

120° x 90° (horizontal x vertical)

HF Trim Control

-2dB, 0dB, +2dB

Boundary EQ

Boundary EQ -3dB, -1.5dB, 0dB

LF Shelf @ 50Hz

AC Input Voltage

100 – 240VAC (±10%), 50 / 60Hz

Dimensions

Height

298 mm (11.7)

Width

185 mm (7.3)

Depth

231 mm (9.1)

Net Weight

4.73 kg (10.43 lbs)

Design

Enclosure Type

Ported

Enclosure Construction

15mm MDF

Enclosure Finish

Matte black PVC

Baffle Construction

Injection-molded structural ABS

Audio Input

Analog Input Types

1 x XLR female, 1 x TRS female, balanced

Input Sensitivity

92dB / 1m (-10dBV Input)
